Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Name: Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Brand: SRYLED
Price: 750 USD

Wholesale Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm from china suppliers

Brand Name : SRYLED

Model Number : SRYLED - OFC - P10

Certification : CE, LVD, RoHS

Place of Origin : Shenzhen, China

MOQ : 1sqm

Price : US$ 750 - 850 / Square Meter

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 1,000 Square Meter per Month

Delivery Time : 10 - 12 Work Days

Packaging Details : Flight Case (Flight case size depend on cabinet quantity)

Pixel Pitch : 10mm

Color Configuration : 1R1G1B 3in1

LED Encapsulation : SMD3535

Module Size : 320mm x 160mm

Module Weight : 0.50kg

Cabinet Size : 9600mm x 9600mm

Cabinet Weight : 25kg

Warranty : 2 Full Years

Contact Now

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Decription:

960mm x 960mm Outdoor Waterproof Die - casting Mg LED Cabinet, Rental Use Cabinet. Using Mg alloy

to makes the cabinet lighter than die - casting Al LED cabinet.

Features:

1. Ultra-light: ghter 40% than die - casting Al cabinet

2.Super slim: high-strength,more slim than aluminum in the design,thinner around 30%

3. Fast cooling: excellent heat dissipation performance to protect the module circuit

4. Anti-interference: special anti electromagnetic interference function

5. High strength: support the weight of 300kg through tension test,more strength than aluminum

6. Easy installation: installed by quick lock for 20s only

7. High precision: seamless splicing though CNC machining

8. High universality: can be processed according to module drawing,used for outdoor and indoor

Specification:

Pixel Pitch	10mm
Pixel Density	10,000dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Size	320mm x 160mm
Module Resolution	32dots x 16dots
Cabinet Size	960mm x 960mm
Cabinet Resolution	96dots x 96dots
Drive Duty	1/4Constant Current
Brightness	>6,500nits
Viewing Distance	10m - 100m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	390W/sqm
Ave. Power Consumption	195W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Cabinet Weight	25kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

Pictures:

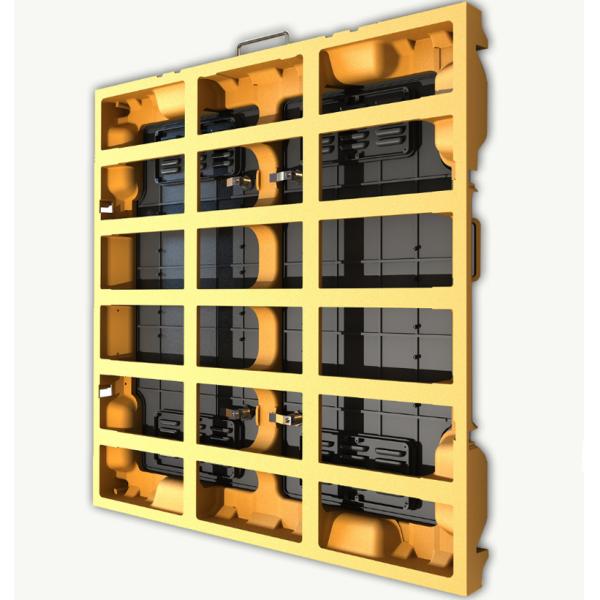

Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm

Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.

2. 24hours per 7 days, 2 full years warranty.

3. fast installation and easy to install.
